Rack Mount 48v 100ah Lifepo4 Battery 200ah 24v 5kwh Off Gird Solar System 48 Volt Lithium Ion Battery

Product Parameter

Product Model:	ESK-2420CR	ESK-4810CR	ESK-4805CR
Type of Battery:	Lithium Iron Phosphate
Battery Assembly Method:	16S1P
Max parallel:	64sets
Rated capacity:	200AH(5120WH)	100AH5120WH	50AH(2560WH)
Rated voltage :	25.6v	51.2v	51.2v
Charging voltage:	29.2V	58.4V	58.4V
Max charging current :	100A			50A
Max continuous discharge current:	100A
Weight:	43kg	43kg	27kg
Display:	LCD
Dimension (L* W * H) mm:	460*442*117	460*442*117	442*360*132.5
Warranty :	5 years
communication faction:	CAN/RS485 or dry contact
Cycle life:	≥6000 times			≥8000 times	≥6000 times
Charging temperature:	0℃ to +55℃
Operating temperature:	-20℃ to +65℃
Protection function:	Overcharge protection,over discharge protection,over-current protection,short circult protection,over temperature protection and low voltage alarm

Main features
●Support OEM/ODM services

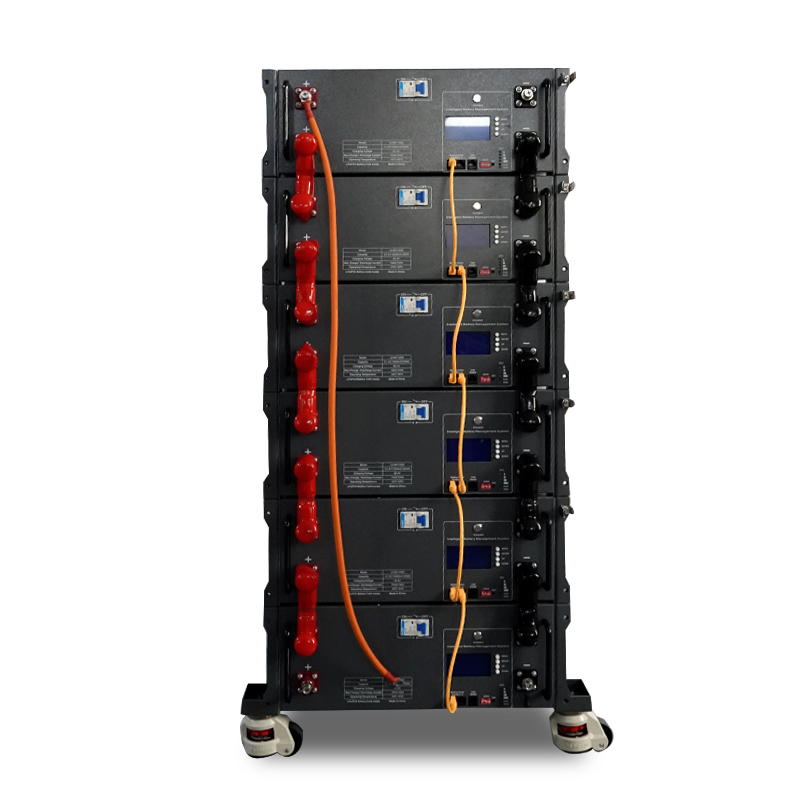

●Rack mounted design for easy stacking
●Maximum support 64 sets in parallel
●Double positive and negative interface
●Built-in intelligent BMS system to balance all cells in short time.
●Built-in automatic protection can prevent overcharge, overdischarge, overvoltage, short circuit

and over temperature
●With RS485/CAN or Dry contact functions.Or add WiFi/Bluetooth
●Cycle life≥6000 times
●5 years warranty,the design life is 20 years
●UL94V-0 flame retardant system, good high temperature performance
●LCD display showing all the working data
●Home energy storage,photovoltaic energy storage projects,Wind energy storage, UPS, Energy

storage of base station, Fire emergency equipment,RV,etc.

Our Advantages

[Smart BMS]: Our lithium battery has a built-in Battery Management System (BMS) to balance all cells,we can ensure consistency and stability during battery use.
[Wide Application]: Suitable for home energy storage,Photovoltaic energy storage projects,Wind energy storage,UPS, Energy storage of base station, Fire emergency equipment,RV,etc.
[Longer Life]: New grade A LiFePO4 blade battery cell,Cycle life≥6000-8000 times,safe,reliable and longer life. We have 20+ years of design experience.
[Stackable]: Double positive and negative poles interface, drawer shaped design, specifically designed for stacking, with a maximum parallel connection of 16-64 units

Q: What are the product models listed in the image?
A: The product models listed in the image are ESK-2420CR, ESK-4805CR, and ESK-4810CR.

Q: What is the type of battery mentioned in the image?
A: The type of battery mentioned in the image is Lithium Iron Phosphate.

Q: How many sets can be connected in parallel for the batteries?
A: The batteries can be connected in parallel up to 64 sets or 16 sets depending on the specific model.

Q: What are the rated capacities and voltages for the different models?
A: The rated capacities and voltages for the models are as follows:
ESK-2420CR: 200AH(5120WH) with a rated voltage of 25.6v
ESK-4805CR: 50AH(2560WH) with a rated voltage of 51.2v
ESK-4810CR: 100AH(5120WH) with a rated voltage of 51.2v

Q: What is the maximum charging current for each model?
A: The maximum charging currents for the models are:
ESK-2420CR: 100A
ESK-4805CR: 50A
ESK-4810CR: 100A

Q: What are the dimensions of the batteries?
A: The dimensions of the batteries are 460*442*117mm for ESK-2420CR and ESK-4810CR, and 442*360*132.5mm for ESK-4805CR.

Q: What is the warranty period for the batteries?
A: The warranty period for the batteries is 5 years.

Q: Which solar inverter brands are matched with these batteries?
A: The matched solar inverter brands for these batteries include PYLONTECH, GOODWE, Growatt, SMA, Victron, TBB, Must, Srne, MEGAREVO, Deye, INVT, Voltro, nic, SOFAR, and SOROTEC.

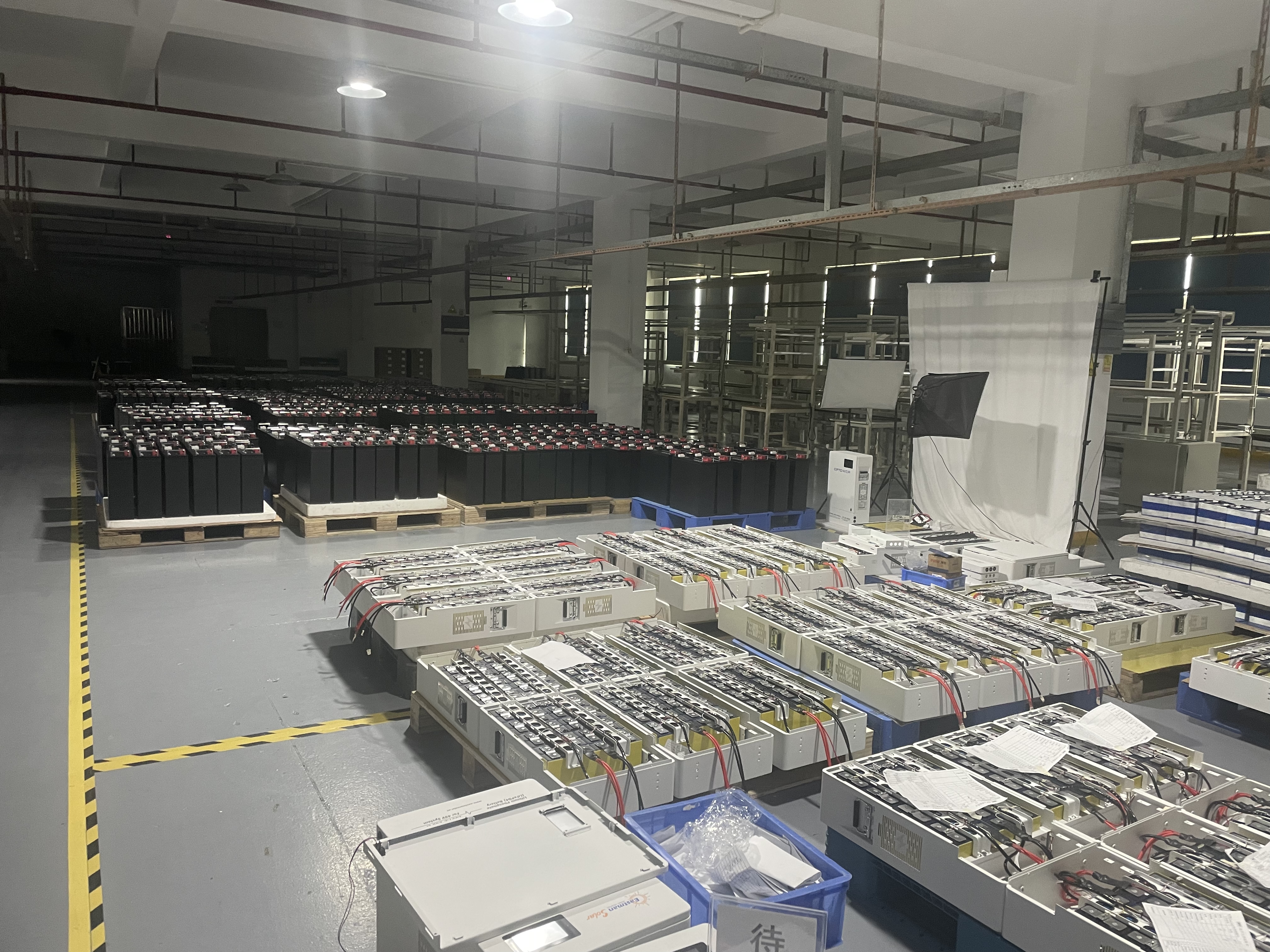

Damien New Energy Technology (Shenzhen) Co., Ltd. is located in Guangming District, Shenzhen, Guangdong Province, China. For 18 years, the company has been devoted to the R&D, production, and sales of new energy and supporting products. It has two independent production plants, with a total of 10 professional production lines. The main products include industrial and commercial energy storage systems, home energy storage batteries, golf cart lithium batteries, RV and truck LiFePo4 batteries, portable power supplies, solar inverters, and more. These products are widely used in photovoltaic energy storage projects, UPS energy storage, industrial and commercial energy storage, outdoor emergency, home energy storage, electric vehicles, fire emergency equipment, RV, truck, golf cart, and more. With superior quality, good reputation, and excellent services, the products are sold well in Europe, North America, the Middle East, Southeast Asia, Africa, and other countries. The company has more than 10 senior engineers and more than 60 professional technicians, and is capable of providing customers with comprehensive design and manufacturing. It can customize all kinds of lithium battery products and energy storage systems according to customers' needs and deliver them to customers all over the world. Damien New Energy has won wide praise for its excellent quality in the field of lithium battery products and energy storage systems. It has always adhered to the principle of "quality first, customer priority, high-quality service and abiding by the contract" to provide customers with high-quality products and high efficiency services. We are committed to serving our customers wholeheartedly and achieving a win-win situation!
