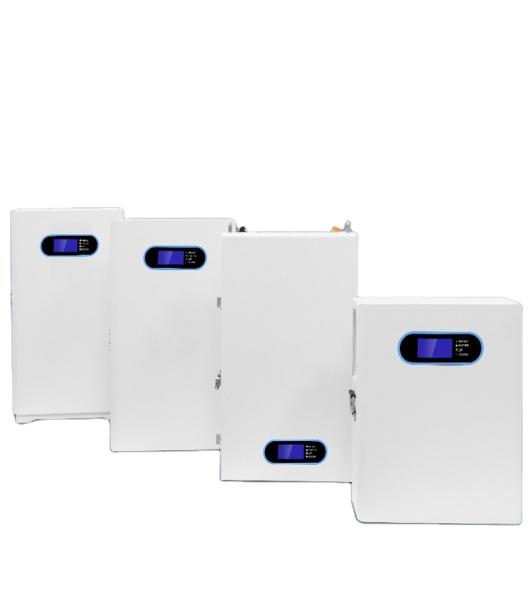

10kwh Solar Energy Storage Battery 5kw Power Wall Mounted 48v Lifepo4 Battery 100ah Lithium Iron Phosphate

Environmental benefits: By reducing the reliance on traditional fossil fuel-based power sources and promoting the use of renewable energy, home energy storage batteries contribute to the overall environmental sustainability and preservation of natural resources.

Products Description

Grade A lifepo4 blade cell

＞8000 cycle life Grade A lifepo4 blade cell for higher and safer temperature resistance.

Built-in intelligent BMS system

Intelligent BMS balancing module ensures the stability and balance of all battery cells.

Matching all mainstream solar inverters

PYLONTECH/GOODWE/Growatt/SMA/Victron/TBB/Must/Srne/MEGAREVO/Deye/INVT/Voltronic/SOFAR/SOROTEC etc.

Product Model:	ESK-4810CW	ESK-4820CWP	ESK-4820CW
Type of Battery:	Lithium Iron Phosphate
Max parallel:	16/64sets
Rated capacity:	100AH (5120WH)	184AH (9420.8WH)	200AH (10240WH)
Rated voltage :	51.2V
Charging voltage:	58.4V
Max charging current :	100A
Max continuous discharge current:	100A/150A optional
Weight:	47kg	74kg	85kg
Display:	LCD
Dimension (L* W * H) mm:	620*460*195	850*455*180	955*460*195
Warranty :	5 years
communication faction:	CAN/RS485/RS232
Cycle life:	≥6000 times	≥8000 times	≥6000 times
Operating temperature:	-20℃ to +65℃
Protection function:	overcharge protection, over discharge protection, over-current protection, short circult protection, over temperature protection and low voltage alarm
Matched solar inverter brands:	PYLONTECH/GOODWE/Growatt/SMA/Victron/TBB/Must/Srne/MEGAREVO/Deye/INVT/Voltronic/SOFAR/SOROTEC etc.
Bluetooth function	Optional

Why Choose Us

Our Advantages:

1.OEM/ODM customization service
We can customize your exclusive energy storage products and system according to your needs, and display or provide them to you to confirm whether they meet your needs.
2.Global service
Our products have been exported to more than 40 countries and regions. A professional pre-sales and after-sales team has served you and received unanimous praise.
3.R & D team
We have more than 10 senior engineers and more than 60 professional technicians who have been committed to product R&D for more than 18 years.
4.Quality control
Quality control is the basis of our management. We put it first. All products are strictly tested before leaving the factory.
5.Source factory
All products are developed and produced by ourselves, with guaranteed quality and service and preferential prices.
6.Professional pre-sales and after-sales team
We have a professional pre-sales and after-sales team to serve you. The pre-sales team can ensure that we can accurately understand your needs, accurately convey your needs to the factory, and supervise the factory to accurately produce the products you need. The after-sales team can conduct installation teaching and use technical guidance after you receive the product, and can track and solve any problems for you in time when the product has any problems.

Installation Cases

FAQ.(contact our sales for more details!)

Q1: What’s the life cycle of Enikol wall mounted battery?

A: 80% DOD more than 6000-8000 cycles.

Q2: Can the battery be connect in parallel?
A: Yes, support in parallel for at most 64pcs.

Q3: Can the wall mounted battery work with my hybrid inverter?
A: Yes, the wall mounted battery suitable for all off grid and hybrid inverter.

Q4: What’s the warranty of wall mounted battery?
A: 5 years, we support extended warranty services.

Q5: What is the battery output power?
A: 5KW Per battery.

Q6: Does the wall mounted battery including inverter?
A: No, is battery only, so it is more flexible to work with 14 brand of inverter preferred by customer.

Q7: Does the wall mounted battery with communication function?
A: Yes, Enikol wall mounted battery with RS232&485&CAN communication with PC and smart LCD for monitoring.

Damien New Energy Technology (Shenzhen) Co., Ltd. is located in Guangming District, Shenzhen, Guangdong Province, China. For 18 years, the company has been devoted to the R&D, production, and sales of new energy and supporting products. It has two independent production plants, with a total of 10 professional production lines. The main products include industrial and commercial energy storage systems, home energy storage batteries, golf cart lithium batteries, RV and truck LiFePo4 batteries, portable power supplies, solar inverters, and more. These products are widely used in photovoltaic energy storage projects, UPS energy storage, industrial and commercial energy storage, outdoor emergency, home energy storage, electric vehicles, fire emergency equipment, RV, truck, golf cart, and more. With superior quality, good reputation, and excellent services, the products are sold well in Europe, North America, the Middle East, Southeast Asia, Africa, and other countries. The company has more than 10 senior engineers and more than 60 professional technicians, and is capable of providing customers with comprehensive design and manufacturing. It can customize all kinds of lithium battery products and energy storage systems according to customers' needs and deliver them to customers all over the world. Damien New Energy has won wide praise for its excellent quality in the field of lithium battery products and energy storage systems. It has always adhered to the principle of "quality first, customer priority, high-quality service and abiding by the contract" to provide customers with high-quality products and high efficiency services. We are committed to serving our customers wholeheartedly and achieving a win-win situation!
