Specific parameters:
| Product Model | ESK-4810CW |
| Type of Battery | Lithium Iron Phosphate |
| Max parallel | 16 sets |
| Rated capacity | 100AH (5120WH) |
| Rated voltage | 51.2V |
| Charging voltage | 58.4V |
| Max charging current | 100A |
| Max continuous discharge current | 100A/150A/200A optional |
| Weight | 47kg |
| Dimension (L* W * H) mm | 620*460*195 |
| Display | LCD |
| Warranty | 5 years |

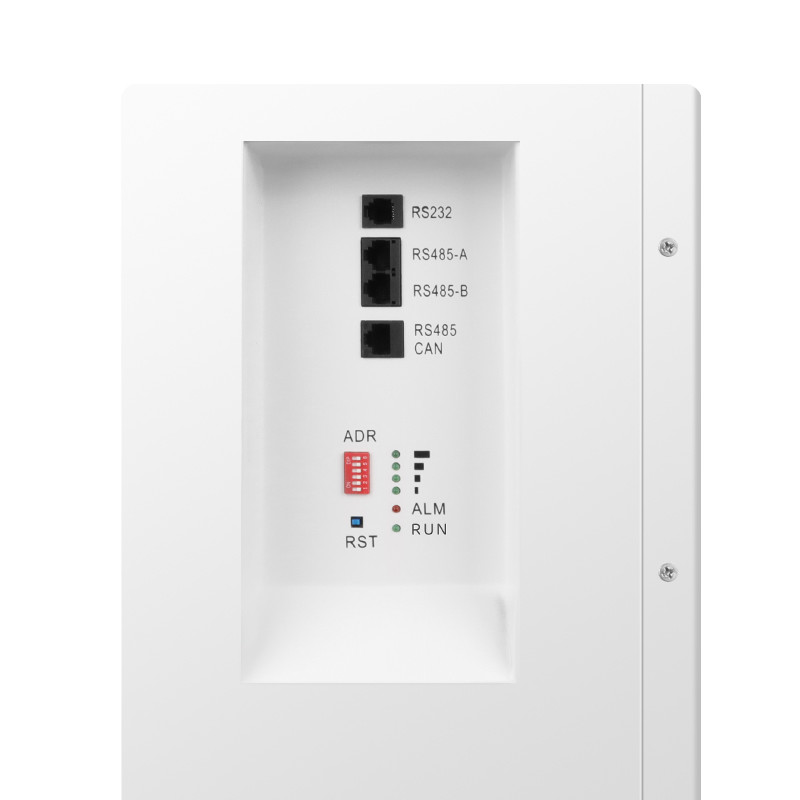

| Communication function | CAN/RS485/RS232 |
| Shell Material | White painted steel |
| Cycle life | ≥6000 times |
| Operating temperature | -20℃ to +65℃ |
Features:
- The ESK-4810 CW Lithium Iron Phosphate (LiFePO4) battery pack is
designed to be of high quality, the safest and most usable.
- High-performance A + cell * 16, available for repair and
replacement.
- Typical battery life: 6000~8000 cycles.
- 48V (51.2V nominal voltage) 100Ah 5.12kWh.
- Five years warranty. Design service life is 10-20 years
- Protection function:Overcharge protection, over discharge
protection, over-current protection, short circuit protection, over
temperature protection and low voltage alarm
- Matched solar inverter
brands:PYLONTECH/GOODWE/Growatt/SMA/Victron/TBB/Must/Srne/MEGAREVO/Deye/INVT/Voltronic/SOFAR/SOROTEC,etc.
- Bluetooth function:Optional
- Application:Home Appliances, Industrial and commercial energy
storage,Household energy storage,Large-scale photovoltaic energy
storage projects,UPS energy storage
Technical Parameters:
| Model | ESK-4810CW (Wall Mounted) |
| Mounting Type | Wall Mounted |
| Communication function | RS485/RS232/CAN Protocol |
| Anode Material | LFP |
| Shell Material | White Painted Steel |
| Display | LCD |
| Rated Capacity | 100AH (5120WH) |
| Max continuous discharge current | 100A |
| Charging Voltage | 58.4V |
| Discharge End Voltage | 44V |
Applications:
ENIKOL ESK4810CW Wall Mounted LiFePo4 Battery is a high-quality
product that is ideal for a range of applications. With its
built-in BMS, this battery offers reliable performance and safety,
making it a great choice for a variety of occasions and scenarios.
One of the most popular applications for the ENIKOL ESK4810CW Wall
Mounted LiFePo4 Battery is for off-grid solar power systems. This
48v 100ah lifepo4 battery can store up to 10kwh of energy, making
it perfect for powering homes, cabins, and other remote locations.
Its high-capacity design means that it can run appliances and
electronics for extended periods without needing to be recharged,
providing reliable power for all your needs.
The ENIKOL ESK4810CW Wall Mounted LiFePo4 Battery is also a great
choice for backup power systems. With its high capacity and
reliable performance, this battery can provide backup power for
homes and businesses in the event of a power outage. Its LCD
display makes it easy to monitor its performance and ensure that it
is always ready when you need it most.
No matter what your needs are, the ENIKOL ESK4810CW Wall Mounted
LiFePo4 Battery is a versatile and reliable choice. With its
high-quality construction, advanced features, and competitive price
of USD665, it's the perfect solution for anyone looking for a
high-capacity, high-performance battery. Plus, with a minimum order
quantity of just 1 piece, and packaging details of Wooden box
packaging, you can easily get the ENIKOL ESK4810CW Wall Mounted
LiFePo4 Battery delivered to your door.
Customization:
ENIKOL offers Product Customization Services for their Wall Mounted
LiFePo4 Battery, Model Number ESK4810CW, manufactured in China.
This product is certified with CE, FCC, UKCA, UN38.3 and MSDS. The
minimum order quantity is 1 piece at a price of USD665. The
packaging details include wooden box packaging and the delivery
time takes 7-15days. Payment terms accepted by ENIKOL are T/T, L/C,
D/A, D/P, Western Union, and MoneyGram. The supply ability is 4000
pieces per week.
The ESK-4810CW (Wall Mounted) model has a charging voltage of 58.4V
and can display information through an LCD. The maximum charging
current for this 10kwh lithium ion battery is 100A and the maximum
continuous discharge current is also 100A. This product is ideal
for Wall Mountable LiFePo4 Energy Storage.
Support and Services:
The Wall Mounted LiFePo4 Battery product offers the following
technical support and services:
- Product installation guidance and troubleshooting
- Technical documentation and manuals
- Remote monitoring and support
- Product maintenance and repair services
- Product warranty and guarantee support
Packing and Shipping:
Product Packaging:
The Wall Mounted LiFePo4 Battery product will come in a sturdy
wooden box to ensure safe transportation. The battery will be
securely placed in a foam insert to prevent any damage during
shipping. The box will also include an instruction manual and
mounting hardware.
Shipping:
The Wall Mounted LiFePo4 Battery product will be shipped via a
reputable courier service. The shipping cost will be calculated
based on the weight and destination of the package. Once the
package is shipped, the customer will receive a tracking number to
monitor the status of their shipment.
