| Product Model | ESK-4820CW |
| Type of Battery | Lithium Iron Phosphate |
| Max parallel | 16 sets |
| Rated capacity | 200AH (10240WH) |
| Rated voltage | 51.2V |
| Charging voltage | 58.4V |
| Max charging current | 200A |
| Max continuous discharge current | 200A optional |
| Weight | 85kg |
| Dimension (L* W * H) mm | 955*460*195 |
| Display | LCD |
| Warranty | 5 years |
| Communication function | CAN/RS485/RS232 |
| Shell Material | White painted steel |
| Cycle life | ≥8000 times |
| Operating temperature | -20℃ to +65℃ |
Product Description:

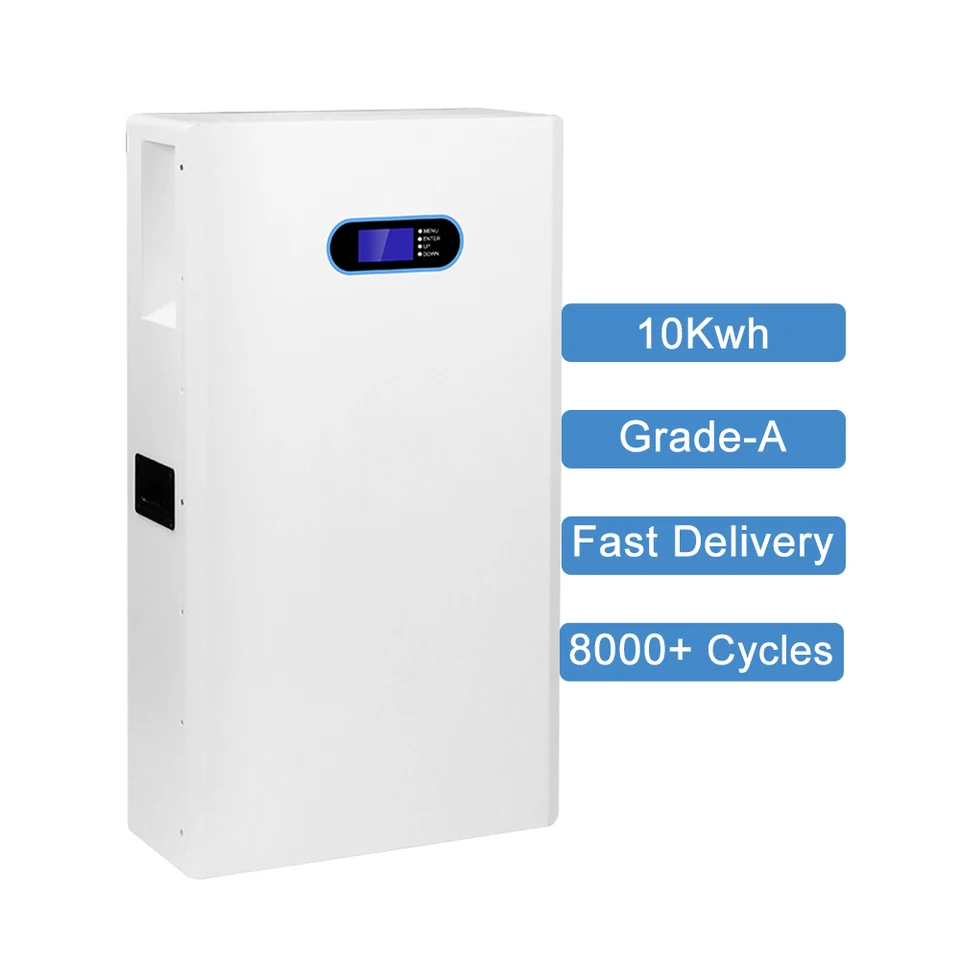

The Wall Mounted LiFePo4 Energy Storage system comes with a
built-in BMS, which ensures the safety and longevity of the
battery. The BMS is responsible for managing the battery cells,
protecting against overcharging, discharging, and temperature
fluctuations.
The LCD display provides users with real-time data and battery
information, including voltage, current, power, and state of
charge. The display makes it easy to monitor the battery's
performance, ensuring that you are always aware of its status.
The Wall Mountable LiFePo4 Energy Storage system is designed for
easy installation and can be mounted on the wall, making it an
excellent space-saving option. The wall-mounted design also offers
excellent protection against accidental damage, making it a safe
choice for busy households and commercial settings.
Features:
| Protection function | Overcharge protection, over discharge protection, over-current
protection, short circuit protection, over temperature protection
and low voltage alarm |
| Matched solar inverter brands | PYLONTECH/GOODWE/Growatt/SMA/Victron/TBB/Must/Srne/MEGAREVO/Deye/INVT/Voltronic/SOFAR/SOROTEC,etc. |
| Bluetooth function | Optional |
| Application | Home Appliances, Industrial and commercial energy storage,Household
energy storage,Large-scale photovoltaic energy storage projects,UPS
energy storage |
Technical Parameters:
| Battery Model | ESK-4820CW (Wall Mounted & Floor Standing) |
| Rated Capacity | 200AH(10240WH) |
| Shell Material | White Painted Steel |
| Anode Material | LFP |
| BMS | Built In BMS |
| Cycle life | ≥6000 Times |
| Display | LCD |
Applications:
The max continuous discharge current of ENIKOL ESK4820CW is
200A(10KW), which can meet the power demand of various appliances.
It can be connected in parallel up to 16 units, providing scalable
energy storage solutions for different scenarios.
In summary, ENIKOL ESK4820CW is a reliable and cost-effective
wall-mountable LiFePo4 energy storage solution for 48V solar energy
systems. With its high-quality performance, flexible communication
functions, and scalable design, it is suitable for residential and
commercial occasions and scenarios.
Price: USD1139 for sample(Wholesale prices are negotiable)
Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability: 4000 pieces per week
Support and Services:
The Wall Mounted LiFePo4 Battery is a high-performance and reliable
energy storage solution for residential and commercial
applications. It features a long lifespan, fast charging
capability, and high energy efficiency. Our team of technical
experts is available to provide product support and services
including:
- Installation guidance and technical assistance
- Troubleshooting and diagnosis of issues
- Upgrades and customization options
- Product training and educational resources
We are committed to ensuring that our customers receive the highest
level of support and satisfaction with their Wall Mounted LiFePo4
Battery. Please do not hesitate to contact us for any technical
inquiries or service requests.
