Specific parameters:
| Product Model | ESK-4810CWT |
|---|
| Type of Battery | Lithium Iron Phosphate |
|---|
| Max parallel | 16 sets |
|---|
| Rated capacity | 100AH (5120WH) |
|---|
| Rated voltage | 51.2V |
|---|
| Charging voltage | 58.4V |
|---|
| Max charging current | 100A |
|---|
| Max continuous discharge current | 100A |
|---|
| Weight | 47kg |
|---|
| Dimension (L* W * H) mm | 620*460*195 |
|---|
| Display | LCD/Touchable screen |
|---|
| Warranty | 5 years |
|---|
| Communication function | CAN/RS485/RS232 |
|---|
| Shell Material | White painted steel |
|---|
| Cycle life | ≥6000 times |
|---|
| Operating temperature | -20℃ to +65℃ |
|---|
| Protection function | Overcharge protection, over discharge protection, over-current
protection, short circuit protection, over temperature protection
and low voltage alarm |
|---|
| Matched solar inverter brands | PYLONTECH/GOODWE/Growatt/SMA/Victron/TBB/Must/Srne/ MEGAREVO/Deye/INVT/Voltronic/SOFAR/SOROTEC,etc. |
|---|
| Bluetooth function | Optional |
|---|
| Application | Home Appliances, Industrial and commercial energy storage,Household
energy storage,Large-scale photovoltaic energy storage projects,UPS
energy storage |
|---|
Product Description:
With a rated capacity of 100AH (5120WH), this battery is capable of
storing large amounts of energy generated by solar panels or other
renewable sources. It can be easily connected in parallel with up
to 16 sets, enabling users to scale their energy storage needs as
required.
The 48V Solar Battery features a user-friendly LCD/touchable screen
display, allowing users to monitor the battery's status,
performance, and other important information. The display is easy
to read and understand, even for those with little technical
experience.
In addition to its advanced monitoring capabilities, this battery
also comes with communication functions such as CAN, RS485, and
RS232. These functions allow for easy integration with other
systems and devices, enabling a seamless and efficient energy
management system.
Overall, the 48V Solar Battery is an excellent choice for those who
are looking for a reliable and efficient energy storage solution.
Its durable construction, high storage capacity, and user-friendly
features make it ideal for both residential and commercial
applications.
Features:
- Product Name: 48V Solar Battery
- Max Charging Current: 100A
- Battery Type: Lithium Iron Phosphate (LiFePO4)
- Cycle life: ≥6000 Times
- Rated Capacity: 100AH (5120WH)
- BMS: Built In BMS
Key Attributes:
Compact design for efficient integration with minimal installation
space required.
Long lifespan, exceeding 6000 cycles at 80% Depth of Discharge
(DOD)
Equipped with an internal Battery Management System (BMS) offering
comprehensive protection, including high voltage safeguarding for
enhanced reliability
Technical Parameters:
| Display | LCD/Touchable Screen |
| Rate Voltage | 51.2V |
| Cycle life | ≥6000 Times |
| Charging Voltage | 58.4V |
| Max Charging Current | 100A |
| Max parallel | 16 Sets |
| Shell Material | White Painted Steel |
| BMS | Built In BMS |
| Rated Capacity | 100AH (5120WH) |
| Communication function | CAN/RS485/RS232 |
Applications:

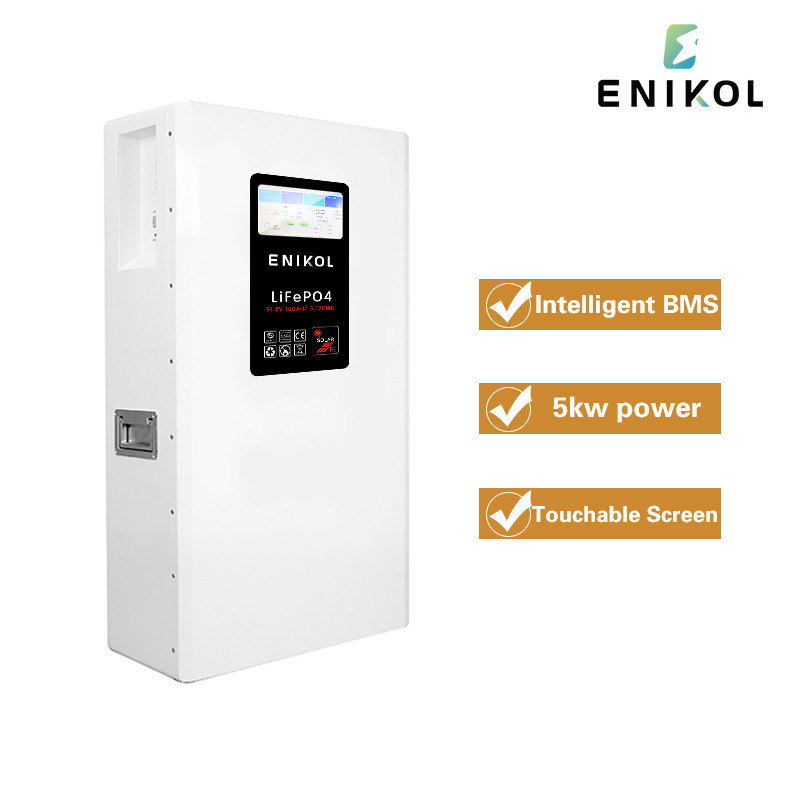

51.2V 100Ah Wall-mounted LiFePO4 Battery
- Designed for residential energy storage
- Stylish and simple appearance
- Wall-mounted installation
In the extreme performance safety test the battery will not catch
fire, explode, leak, and be safer to use.
Long cycle life - Cycle life up to 6000+ times
Over Current Protection
Short Circuit Protection
Over-discharge Protection
Over-charge Protection
Thermal Protection
It can match to main inverter in the market,easy to use.
Customization:
Support to add WIFI/ Bluetooth function: additional optional
Support and Services:
Our product technical support and services include:
- Installation assistance and guidance
- Product troubleshooting and repair
- Remote monitoring and management
- Performance analysis and optimization
- Regular maintenance and upkeep
Our team of experienced technicians and engineers are dedicated to
ensuring that our customers receive the highest level of support
and service for their 48V Solar Battery. Contact us for more
information on our technical support and services.
FAQ:
Q1: What is the brand name of the solar battery?
A1: The brand name of the solar battery is ENIKOL.
Q2: What is the model number of the solar battery?
A2: The model number of the solar battery is ESK-4810CWT.
Q3: Where is the solar battery manufactured?
A3: The solar battery is manufactured in Shenzhen.
Q4: What certifications does the solar battery have?
A4: The solar battery has CE, FCC, UKCA, U38.3, and MSDS
certifications.
Q5: What is the minimum order quantity for the solar battery?
A5: The minimum order quantity for the solar battery is 1 unit.
Q6: What is the price of the solar battery?
A6: The price of the solar battery is negotiable.
Q7: How is the solar battery packaged for shipping?
A7: The solar battery is packaged in wooden boxes for shipping.
Q8: How long does it take to deliver the solar battery?
A8: It takes 7-15 days to deliver the solar battery.
Q9: What are the payment terms for the solar battery?
A9: The payment terms for the solar battery include T/T, L/C, D/A,
D/P, Western Union, and MoneyGram.
Q10: What is the supply ability of the solar battery?
A10: The supply ability of the solar battery is 4000 pieces per
week.
